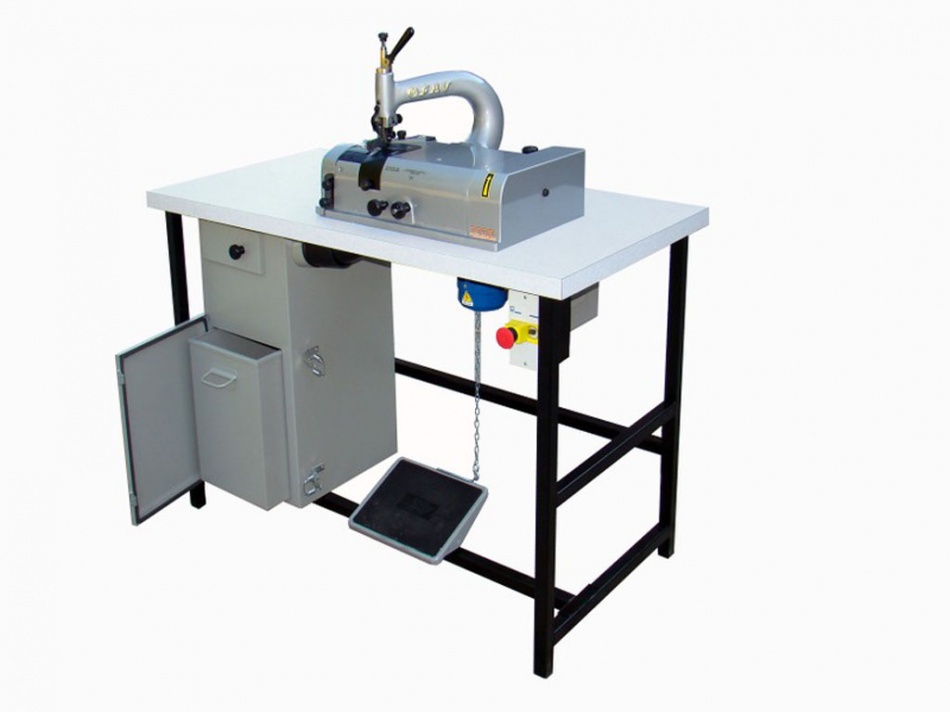

Fratelli Alberti AV2 MA Skiving combining machine

Fratelli Alberti AV2 Skiving combining machine
PRODUCT DESCRIPTION: The AV2 MA skiving machine is known for his simplicity and precision. Clutch system for feed roll allows to regulate the feeding speed by pedal. Machine has suction motor for scrap and waste box. Machine is availble on adjustable height table or fixed table.
MACHINE FEATURES:
- Work table with suction and scrap box;
- Clutch system feed speed (different gear can be used to increase or reduce speed);
- User friendly;
- Easy service;
- Grinding motor for better sharpening;
- Low noise emission;
- Low power consumption
MACHINE OPTIONS:
- Height adjustable work table;
- Thickness gauge;
- Working lamp;
- Lubrication device;
- CBN grinding system;
- Pneumatic presserfoot movement;
- Grinding automatic switch;
- Customizable colour;
- Various feed roll (steel, rubber, ...) and presseerfoot available;
- Kit for adjustable angle skiving (mocassin - 45°).
TECHNICAL DATA:
Skiving width up to: 50 mm
Skiving angle: 0°-45°
Skiving thickness up to: 3 mm
Noise emission: 70 dB (A)
Feed speed up to: 40 m/min
Knife speed: 1870 RPM
Electrical power supply: 0,68 kW
Dimensions: 120 x 60 x 124h cm
Dimensione Imballo in cassa: 130 x 70 x 144h cm
Dimensione Imballo su paletta: 120 x 80 x 140h cm
Peso netto: 96 kg
