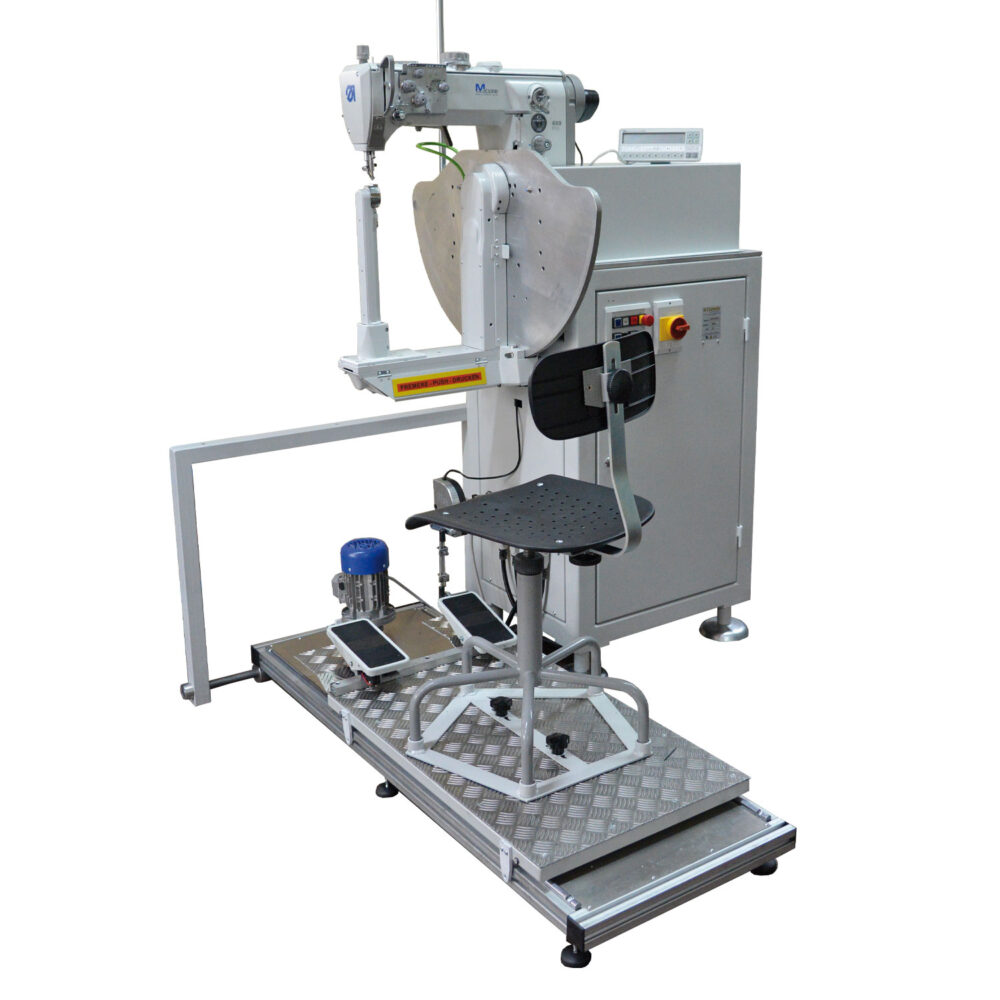

VBO XXS TRIPLE FEEDING Single needle lockstich sewing machine with oscillating arm and XXS post bed

VBO XXS TRIPLE FEEDING Single needle lockstich sewing machine with oscillating arm and XXS post bed

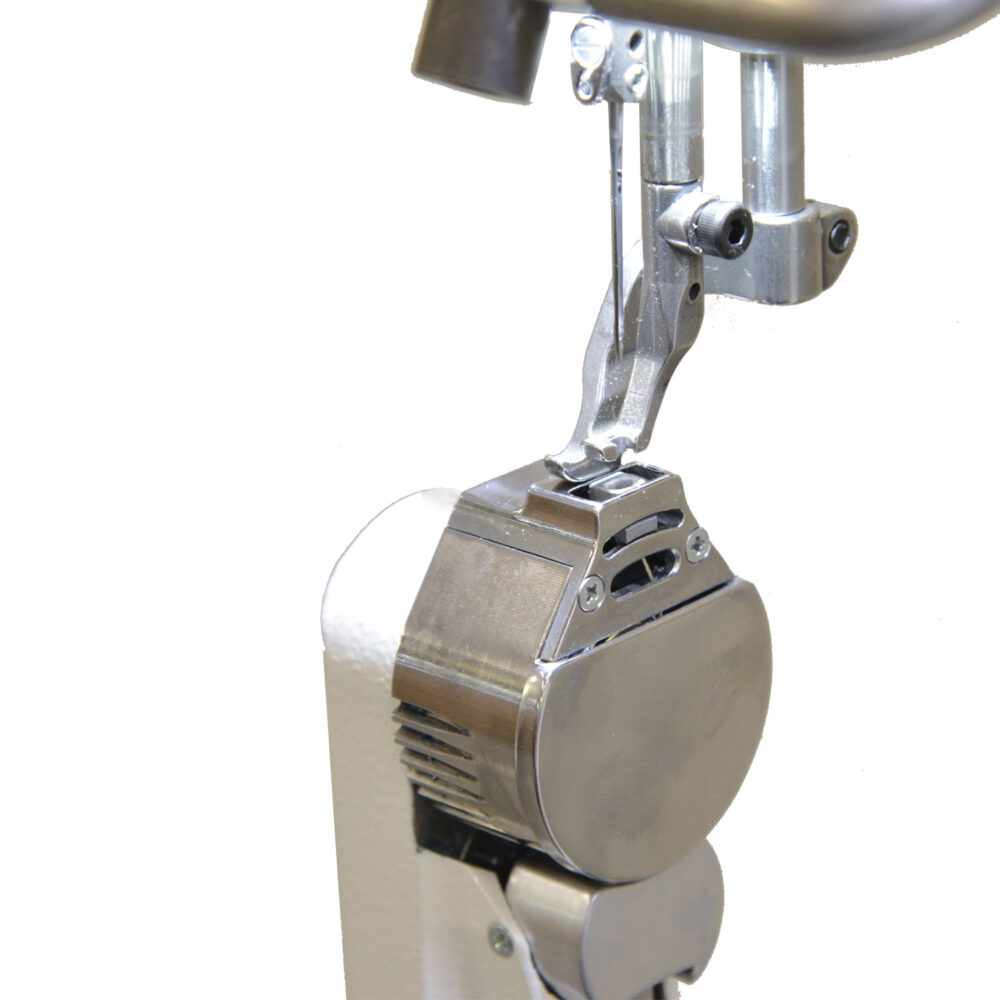

COMETA hook with needle guard, triple feeding, with XXS post bed which allows to stitch bags of very small dimensions and very small corners. The Hook is to the left of the needle.
It is suitable for stitching bags, travelling bags, cases, briefcases, boots and footwear in general.
With 669 sewing head, the working area has been increased of 75 mm compared to the standard version, facilitating the insertion of very big bags.
The machine allows the sewing of side finishes very close to the borders thanks to the needle plate that has been raised and, above all, to the feed dog which enables a constantly linear feeding with the result of a perfectly uniform stitching.
In addition, the revolutionary oscillating arm, synchronized with the operator’s chair, allows the easy inserting of very small or very big bags.

Column height 400 mm

Column diameter 44 mm

Maximum sewing speed 1000 rpm

Possible sewing heads in use:

Sewing head DA-669-180010-ECO (0669 990001)

Oscillating-arm machine, triple feed, 1-needle column, arm movement synchronized with operator's chair, 75mm increased work area compared to the standard VBO. Complete with LED light, pneumatic presser foot lifter. COMETA hook.

OPTIONAL-additional

·         Automatic bartacking kit

·         Micrometric guide

·         Electronic handwheel

Sewing head DA-669-180312-CLASSIC (0669 990003)

Includes double stitch length, pneumatic presser foot lifter, integrated LED light, Automatic bartacking.

OPTIONAL-additional

·         Electronic handwheel

·         Micrometric guide

Sewing head DA-D669-180912-DELTA (0669 990013)

Includes stepper motor-controlled presser foot lift, integrated LED light, Automatick bartacking kit, integrated motor, X-Z axis guide, JOG DIAL electronic handwheel.
