Cometa VCA 40 01 Possible Options and Functions – Post bed sewing machine with triple feed. Lockstitch, vertical hook.

Cometa VCA 40 01 Possible Options and Functions – Post bed sewing machine with triple feed. Lockstitch, vertical hook.

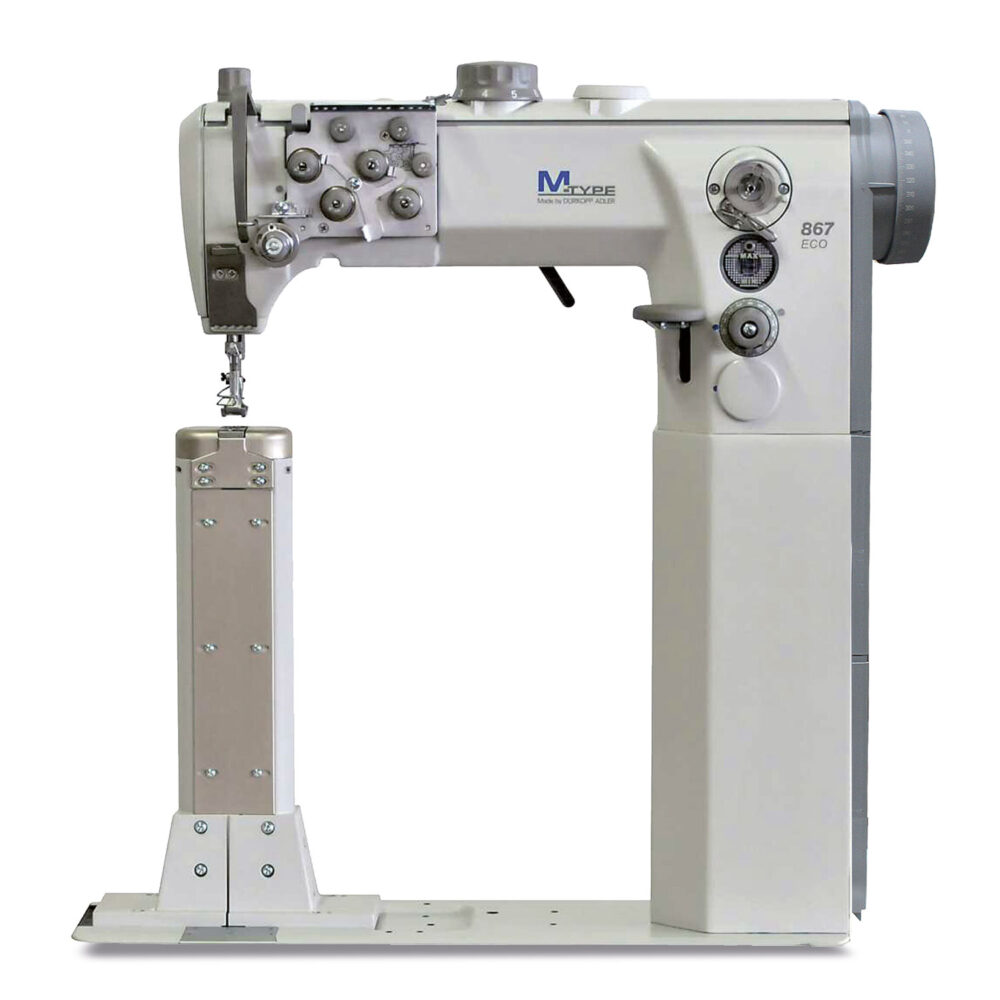

Post bed single or double needle machine, bottom feed, needle feed and alternating feet, with foot stroke adjustable up to 9mm, lockstitch, complete with pneumatic footlift.

Fit for sewing bags, travelling bags, cases, briefcases, boots and shoes in general. Thanks to its small post bed and pointed needle plate, it is particularly suitable for difficult sewing operations such as those of small borders and corners, impossible to be stitched with other kinds of machines.

Possible options and options combinations:

• Single-needle or double-needle machine
• Column height options: 270-400-600 mm
• Standard or extended (700mm) arm length is available
• CS function – pneumatic or mechanical column shifting for easy part positioning
• The above functions are available in various combinations

Column diameter: 45 mm (for single-needle version)

Maximum sewing speed: 1500 rpm

Available functional types of sewing machine heads:

DA-867-ECO: Column-type machine with a vertical hook. Includes motor, table with standard tabletop, and pneumatic presser foot lift.

Optional:

• Automatic tacking kit
• Micrometer needle guide
• Electronic handwheel
• LED lighting

DA-867-CLASSIC: Includes double stitch length, pneumatic presser foot lift, integrated LED lighting, micrometer needle guide, and automatic tacking.

Optional:

• Electronic handwheel

DA-D867-DELTA: Includes stepper motor-controlled presser foot lift, integrated LED lighting, automatic tacking, built-in motor, X-Z needle guide, and JOG-DIAL electronic handwheel.
