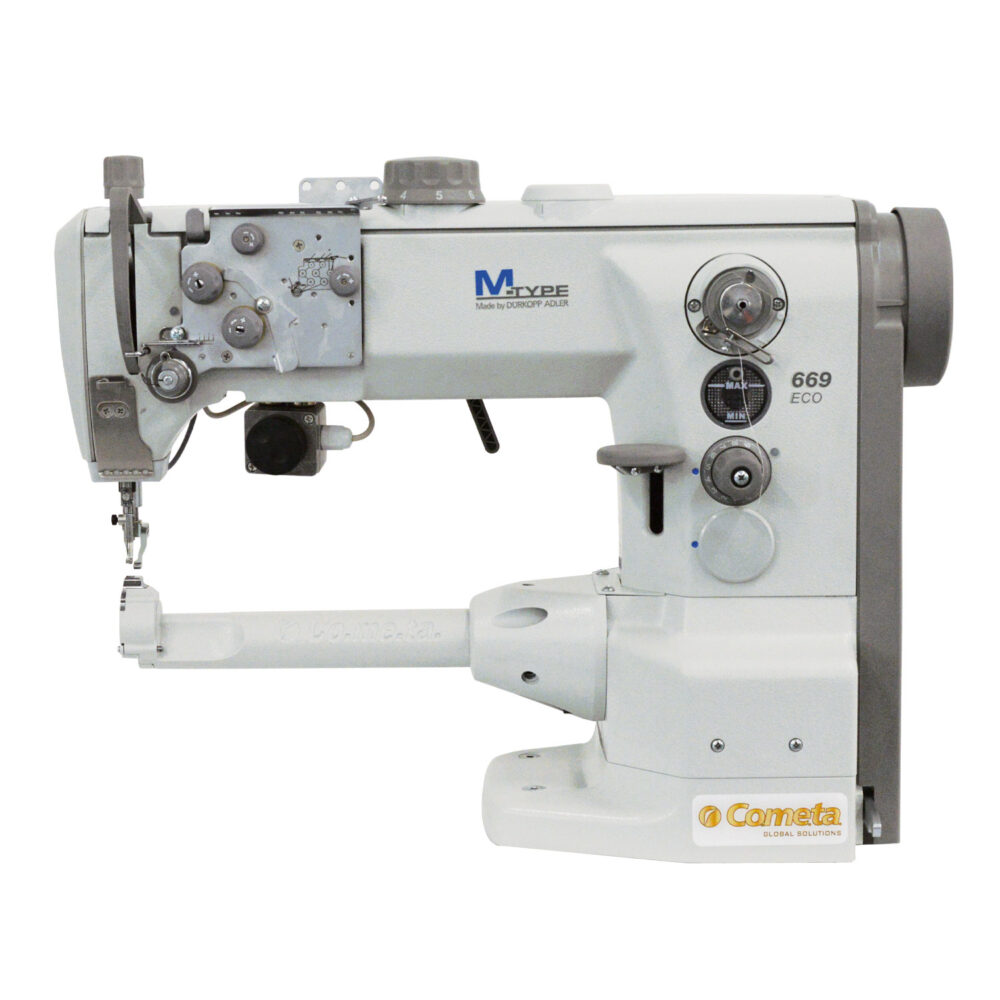

Cometa VBS 669 EVO 300 Special cylinder-arm lockstitch sewing machine, triple feed

Cometa VBS 669 EVO 300 Special cylinder-arm lockstitch sewing machine, triple feed

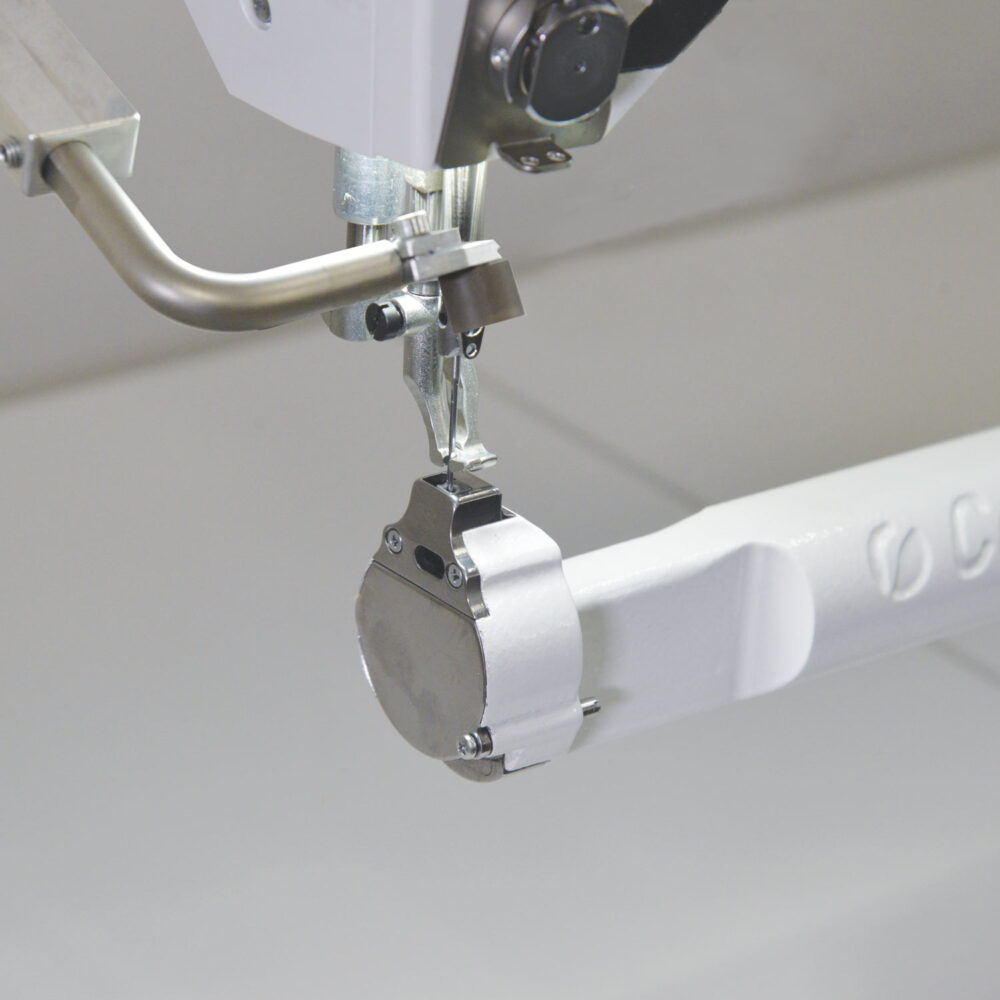

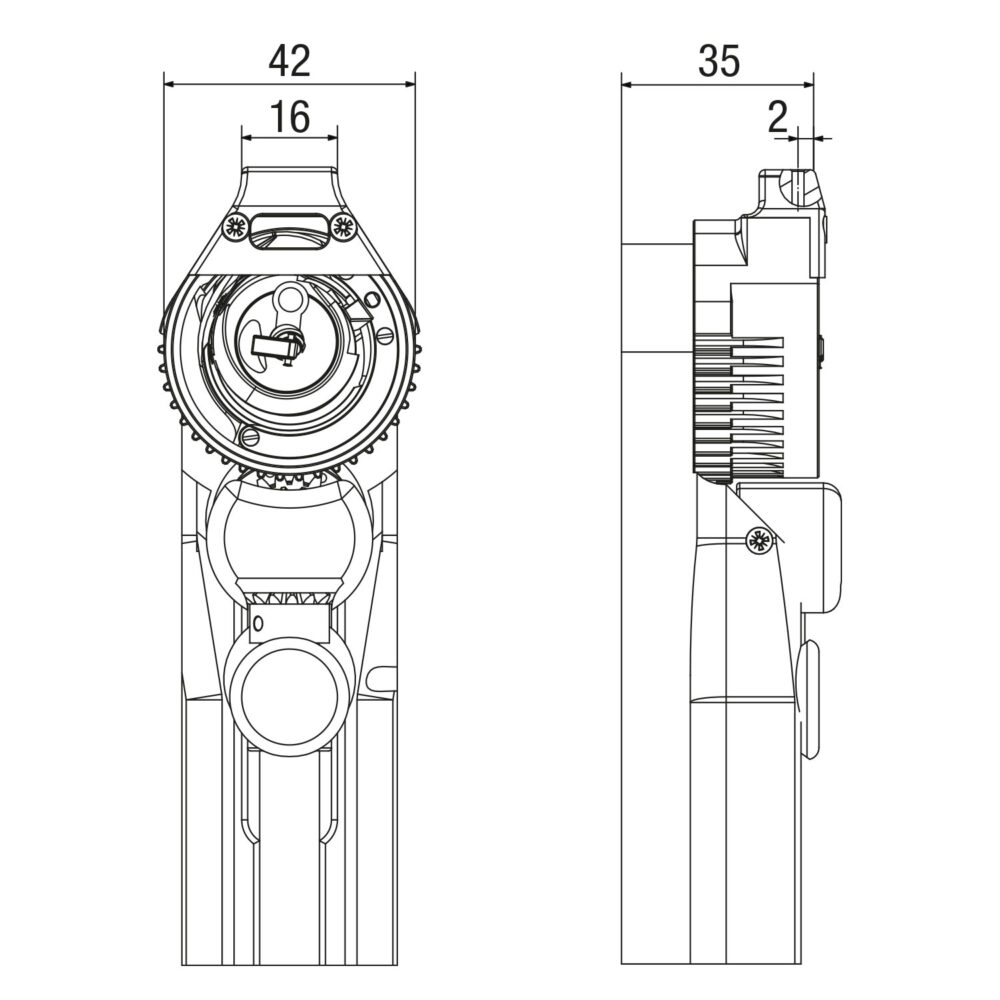

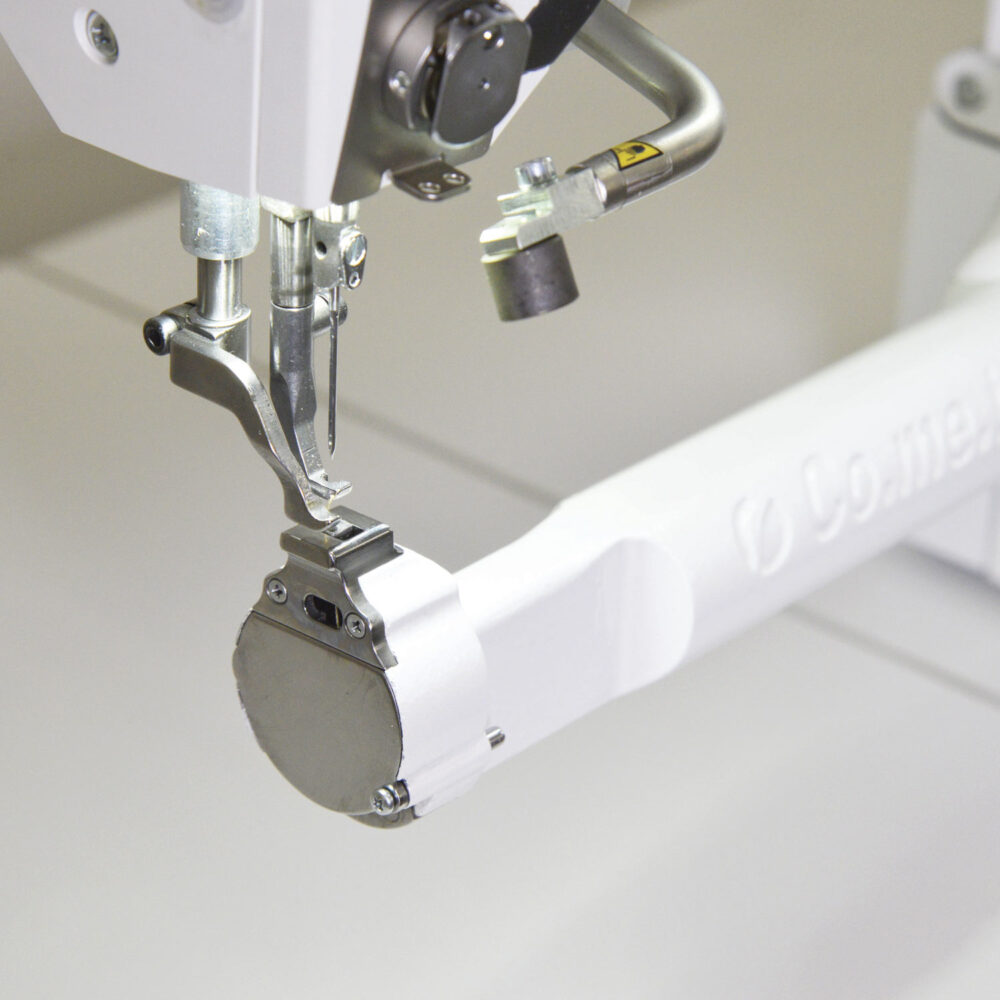

Newly designed cylinder-arm machine, suitable for stitching items of small leather goods such as bags, cases, wallets and footwear in general. Thanks to the dimensions of the pointy needle plate that have been reduced to the minimum, to the small hook and to the triple feeding, it’s particularly suitable for

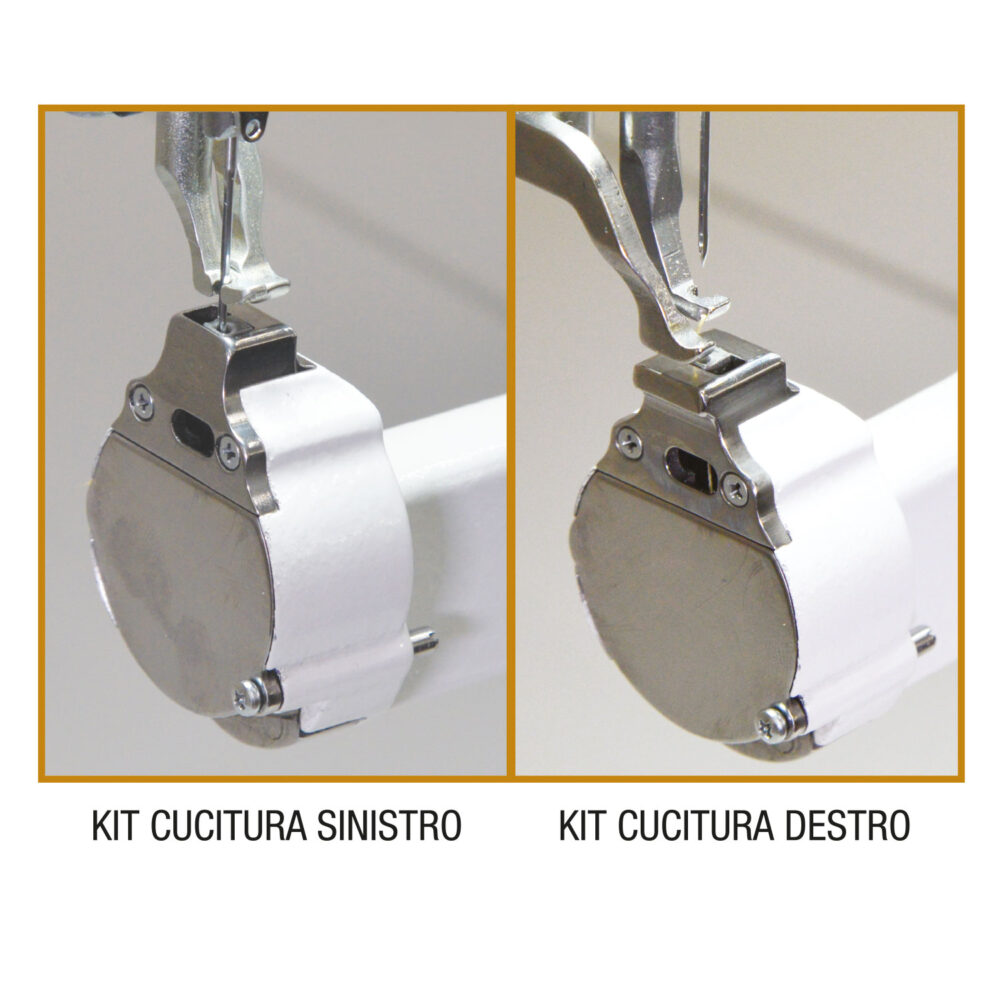

difficult sewing operations, which cannot be carried out through ordinary cylinder-arm machines, ensuring excellent stitching results. Standard sewing system to the right of the needle whit the possibility of mounting the sewing kit to the left of the needle and to insert the electronic guide on the left.

 Maximum sewing speed 1000 rpm

Arm lenght 300 mm.

Possible Machine head subclasses:

669-180010 (0669 990001 ) Cylinder arm sewing machine with horizontal hook.

The machine head DA-669-180010-ECO is in use. Arm lenght 300 mm. Complete with motor, support, standard table and pneumatic foot lift.

OPTIONAL-Additional:

• Automatic bartaking
• Micrometer guide
• Electronic handwheel
• LED light

669-180312 (0669 990003 ) The machine head DA-669-180312-CLASSIC is in use

Includes double stitch length, pneumatic presser foot lift, integrated LED light, micrometer guide, and automatick bartacking.

OPTIONAL-Additional: Electronic Handwheel

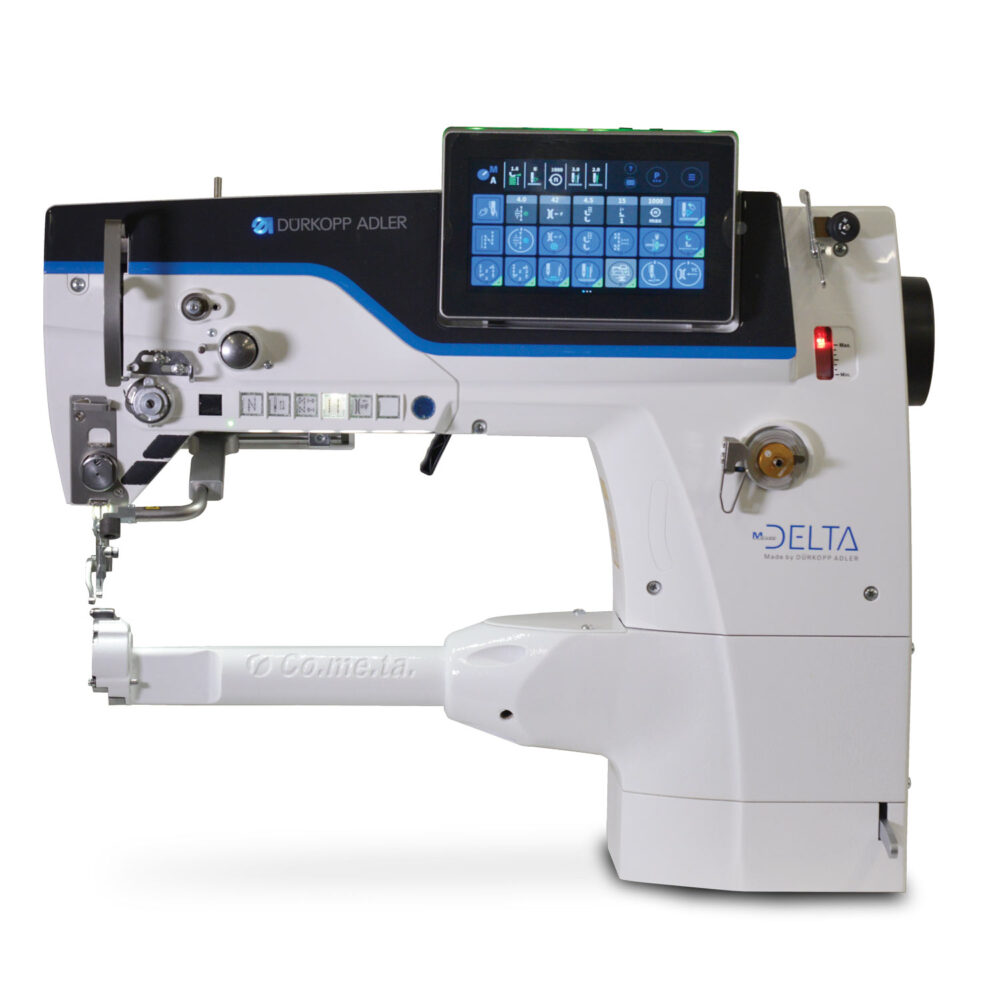

D669-180912 (0669 990013 ) The machine head unit DA-D669-180912-DELTA is in use.

Includes stepper motor-controlled foot lift, integrated LED light, bartacking kit, integrated motor, X-Z axis guide, electronic handwheel JOG DIAL
